Avondale Club House and Other Mechanical Schematics, Late 19th/ Early 20th C.
Item Details

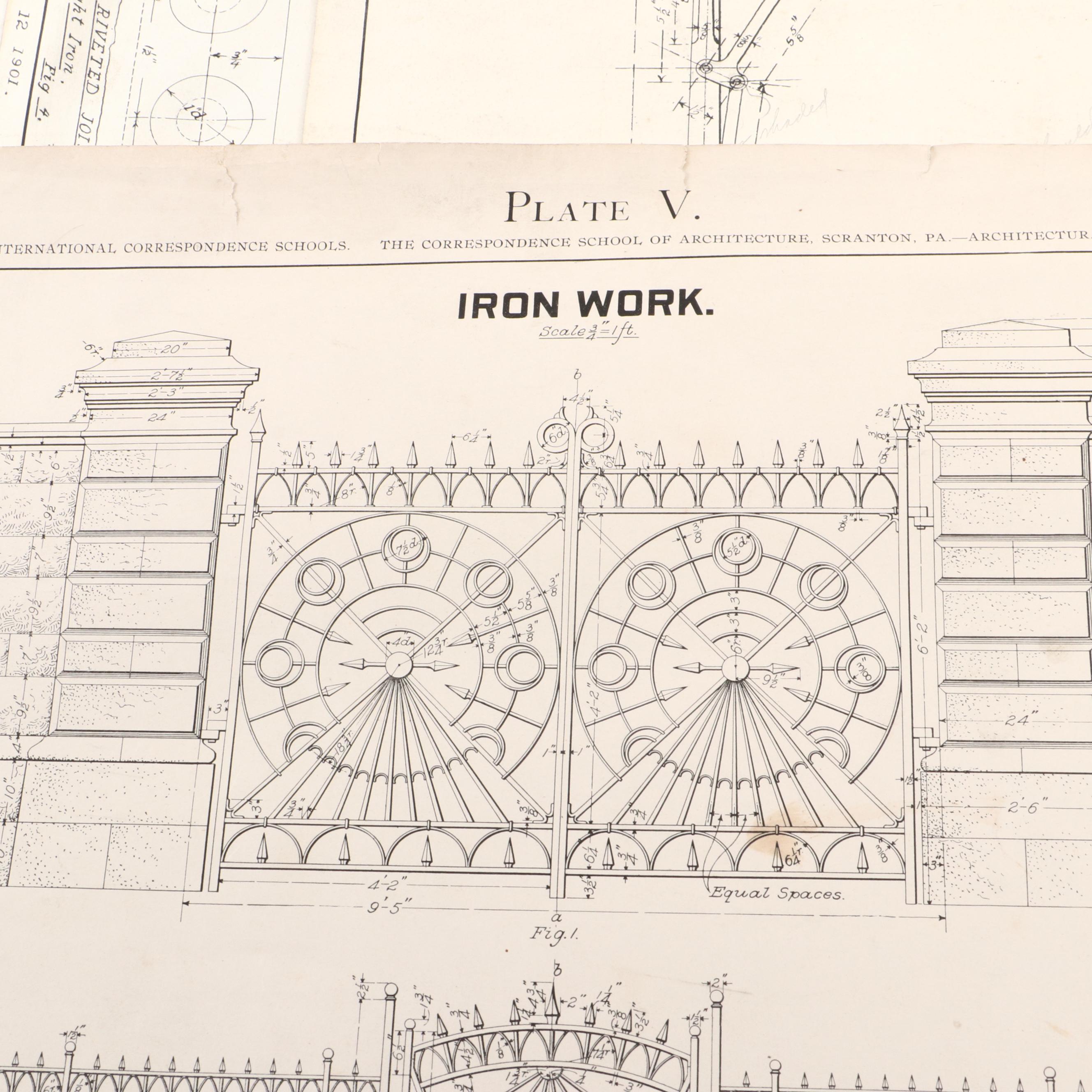

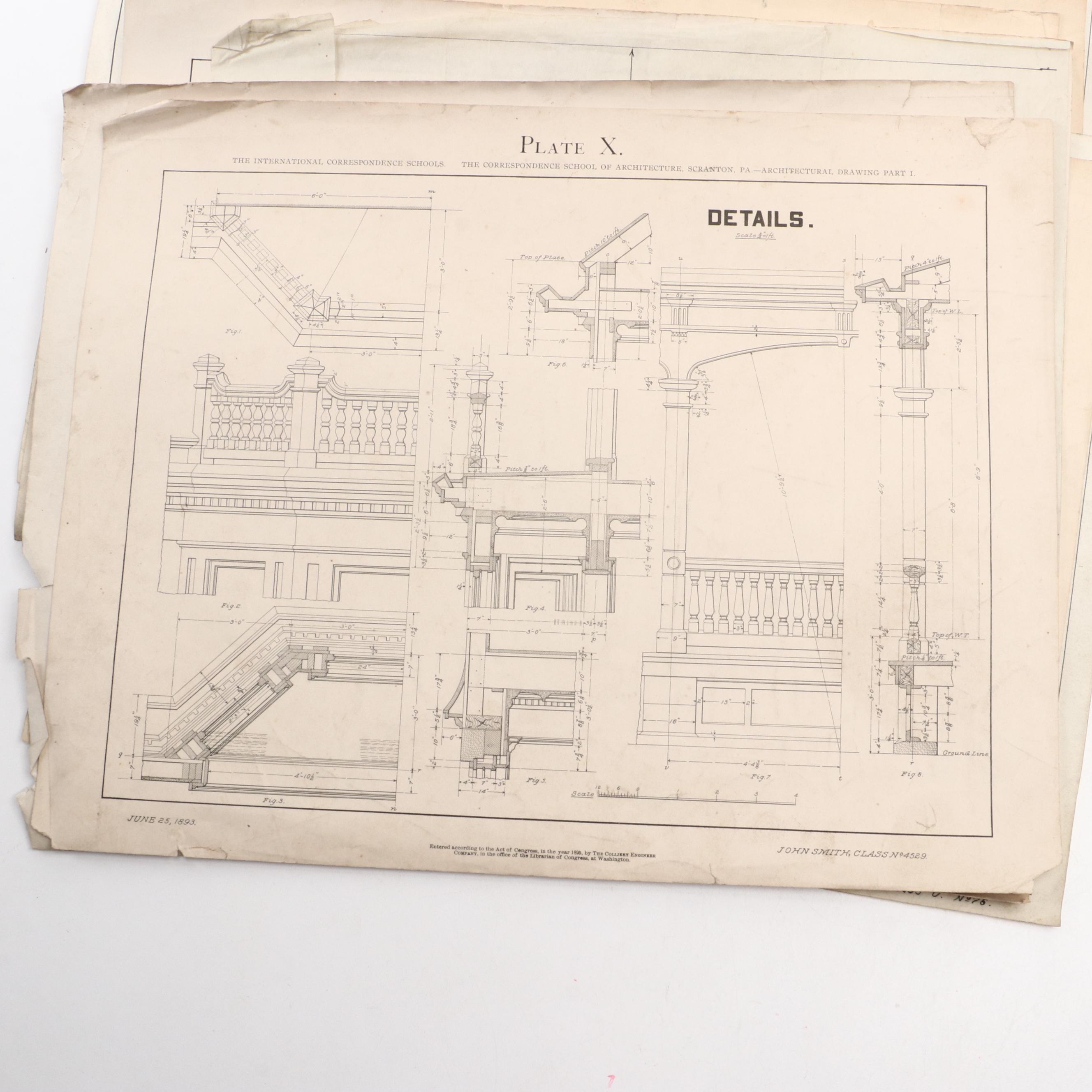

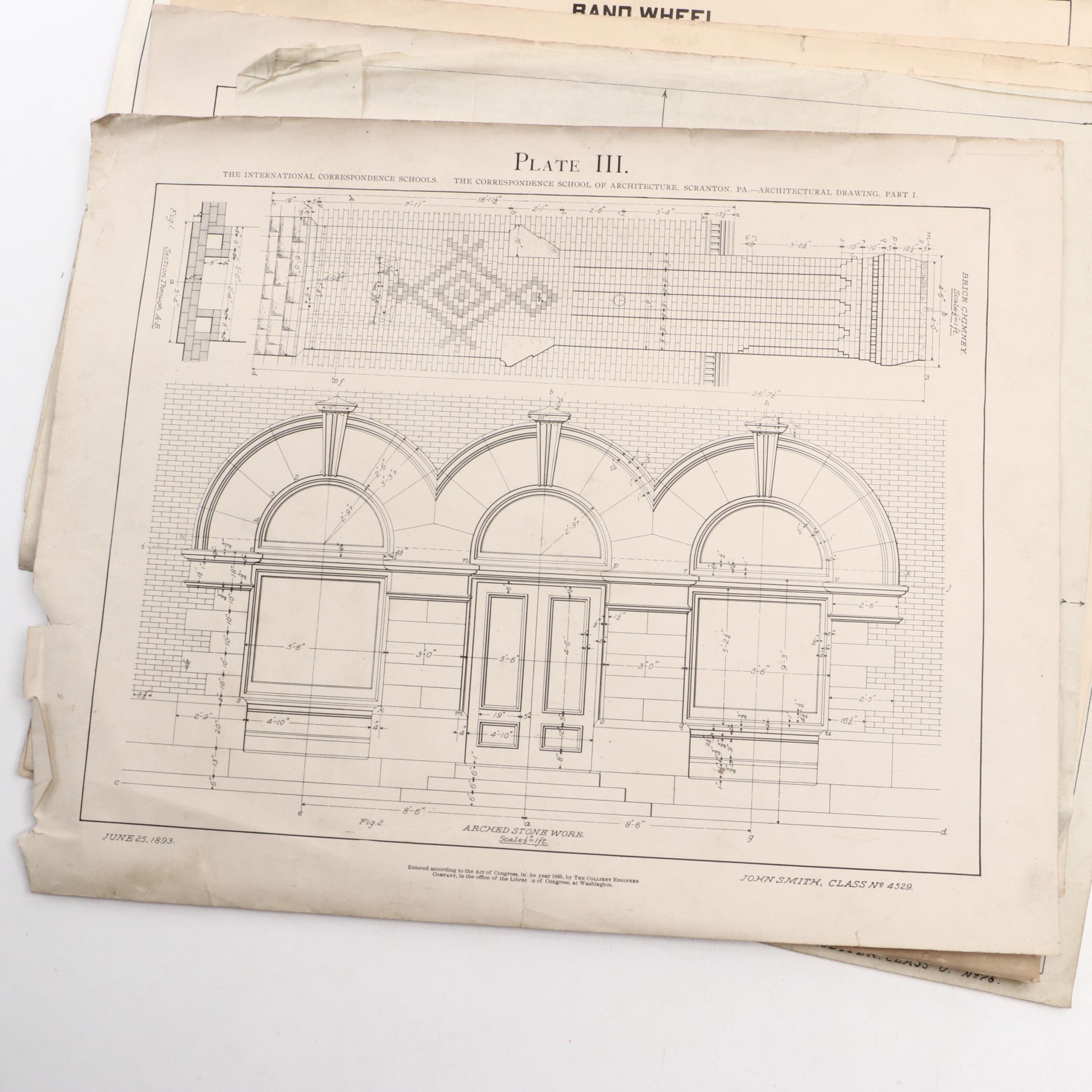

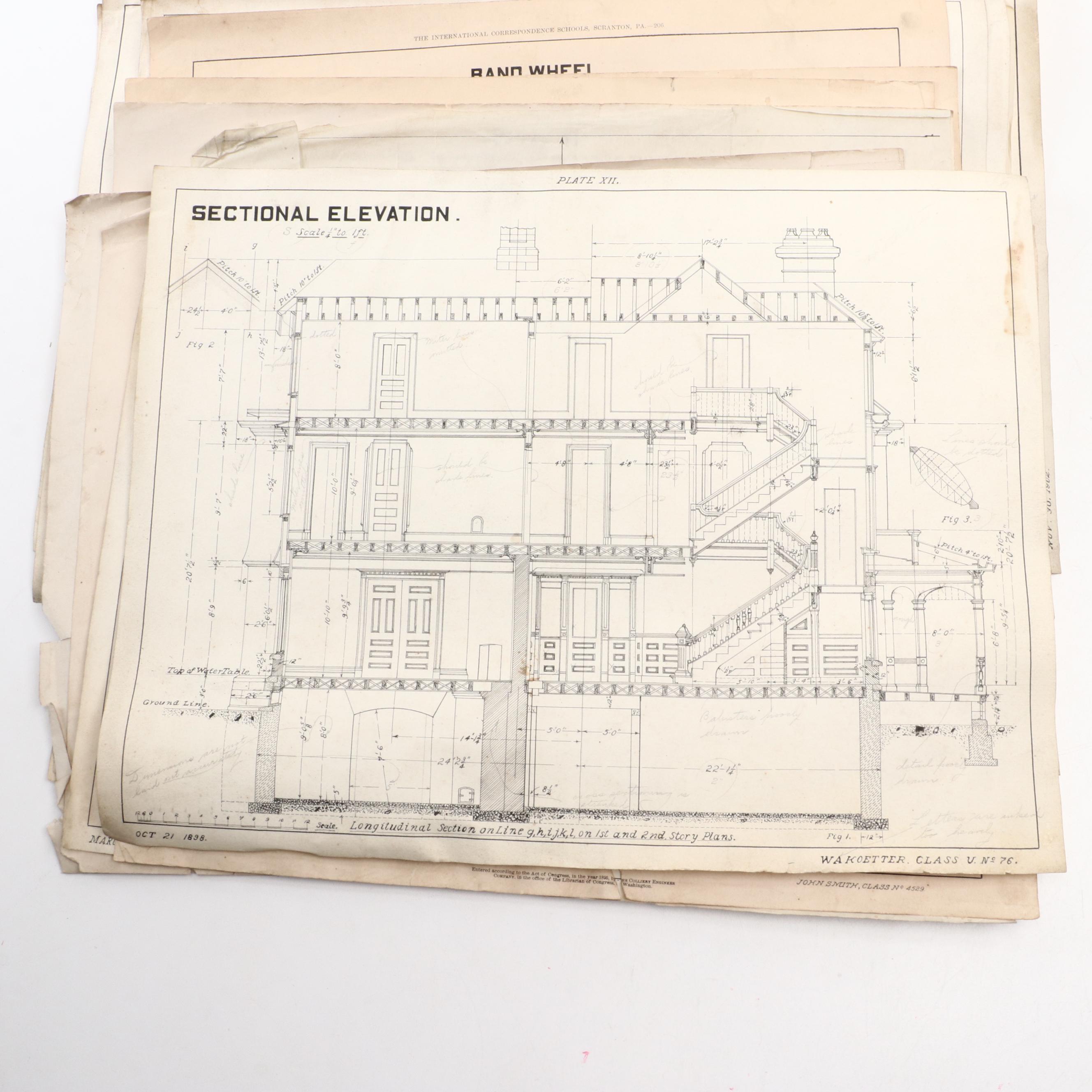

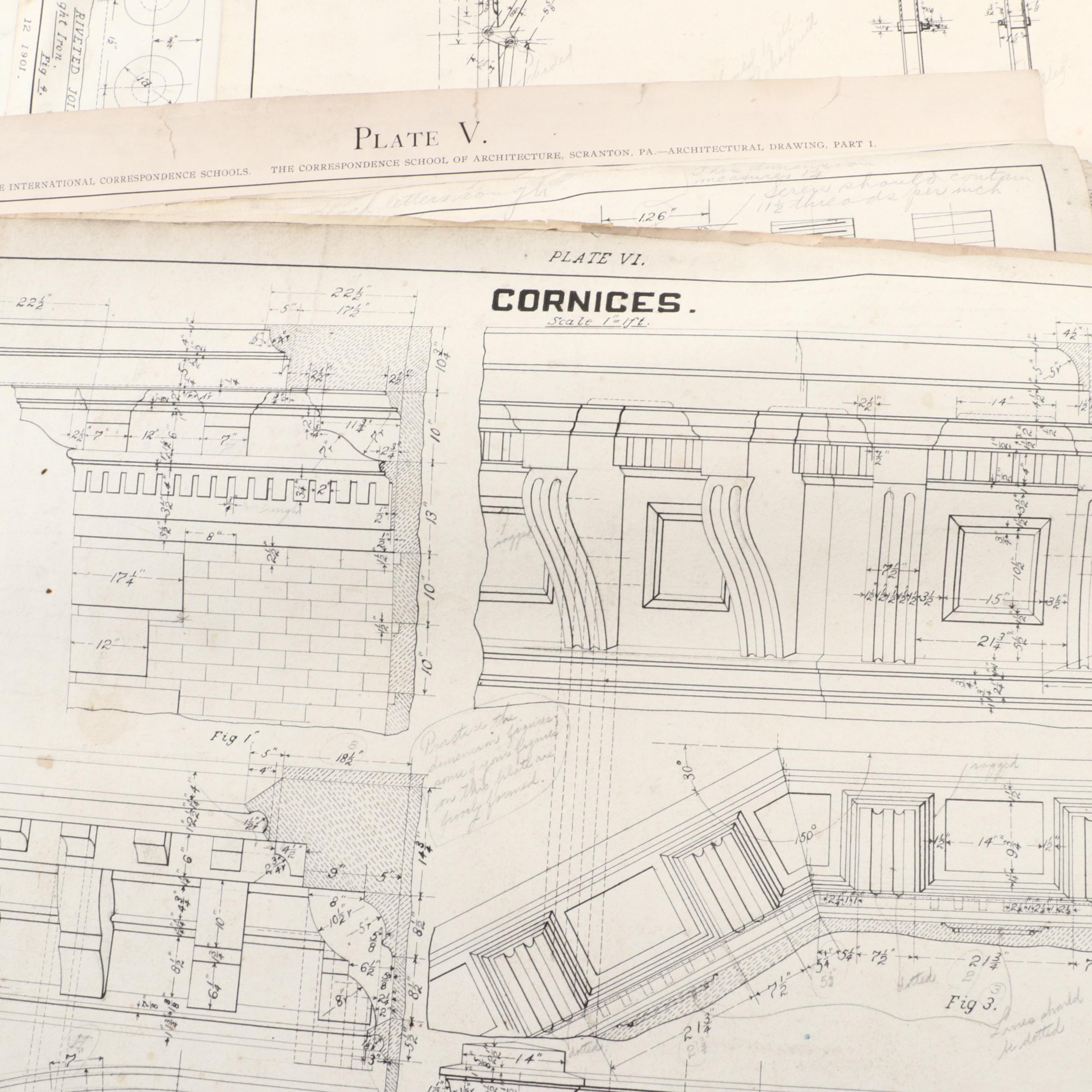

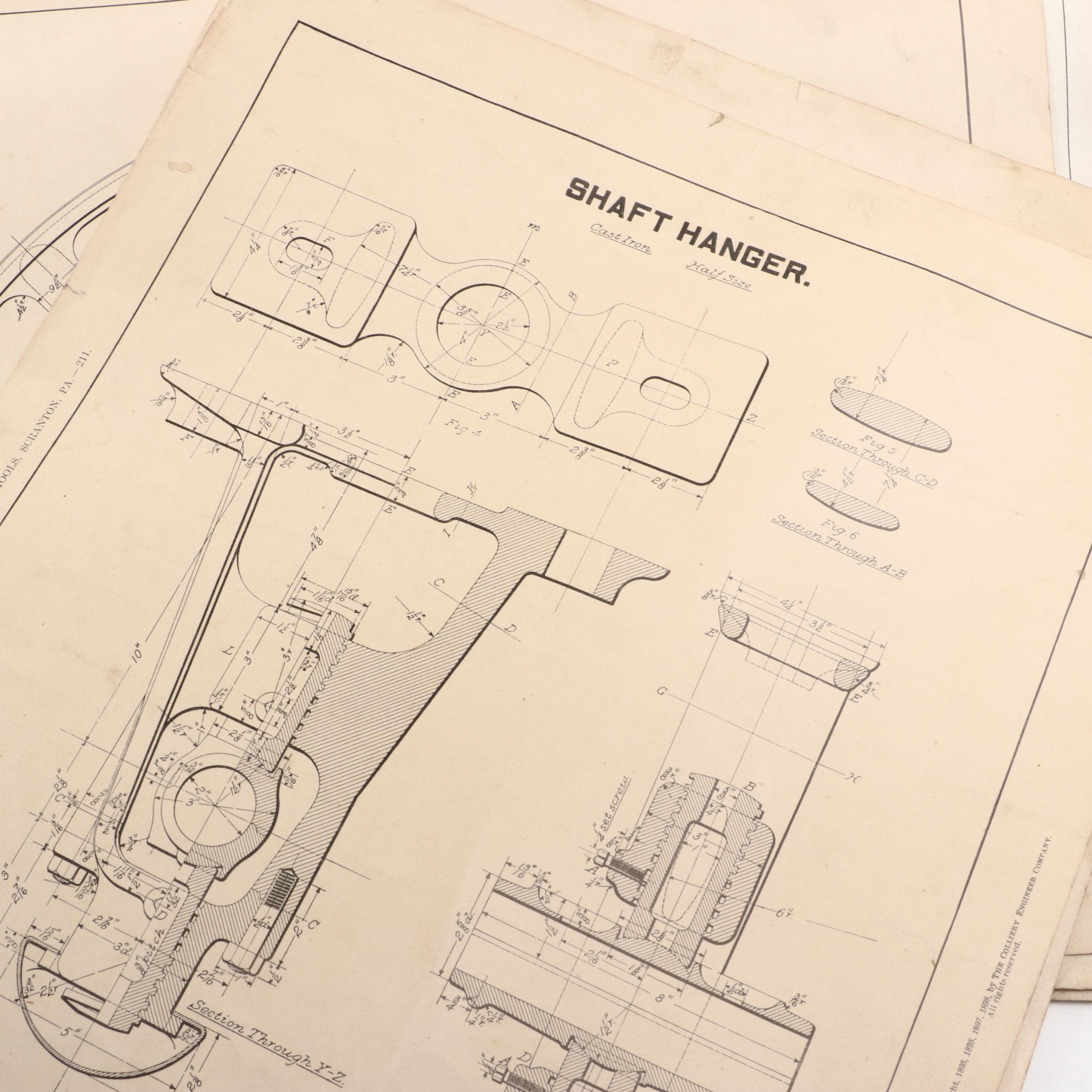

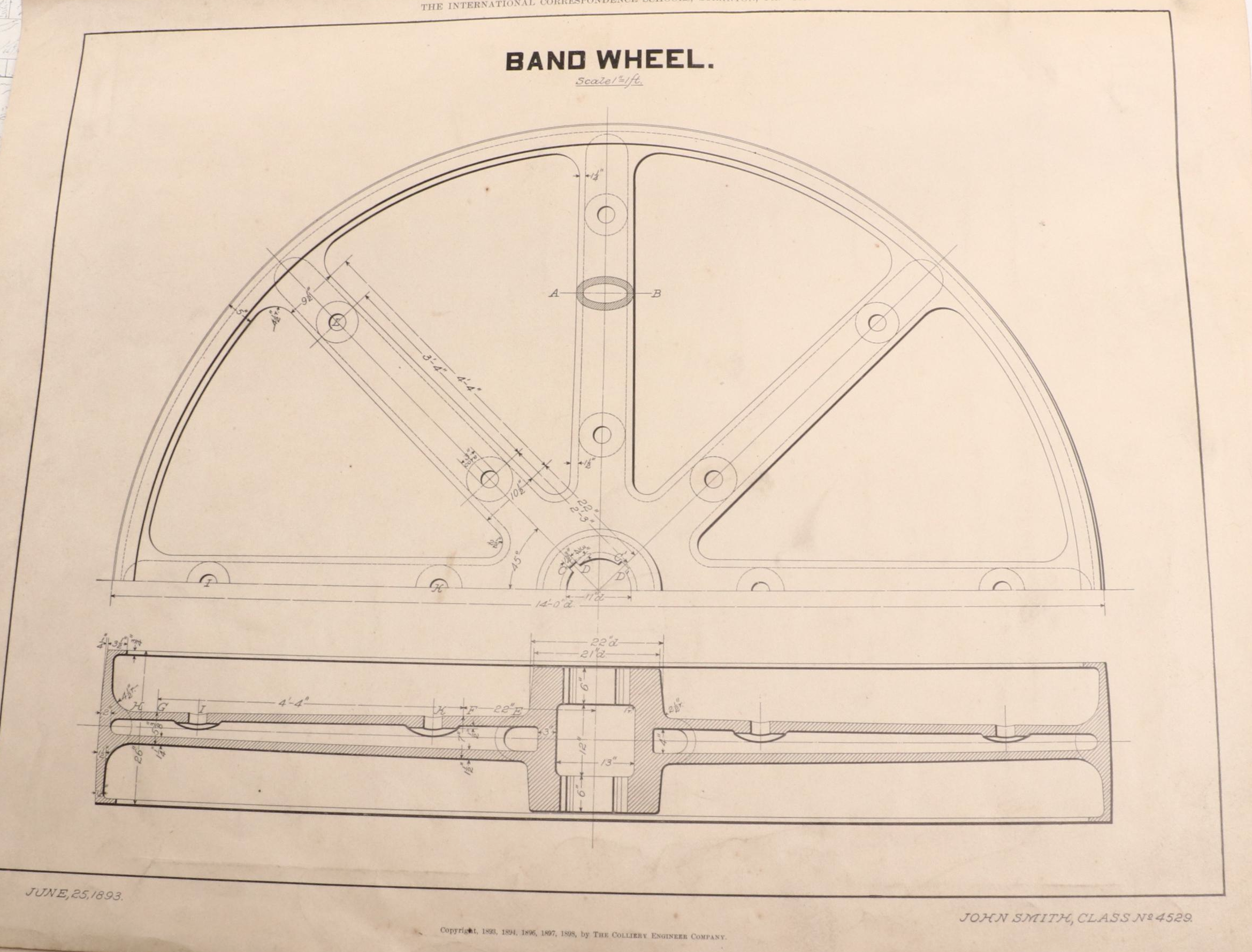

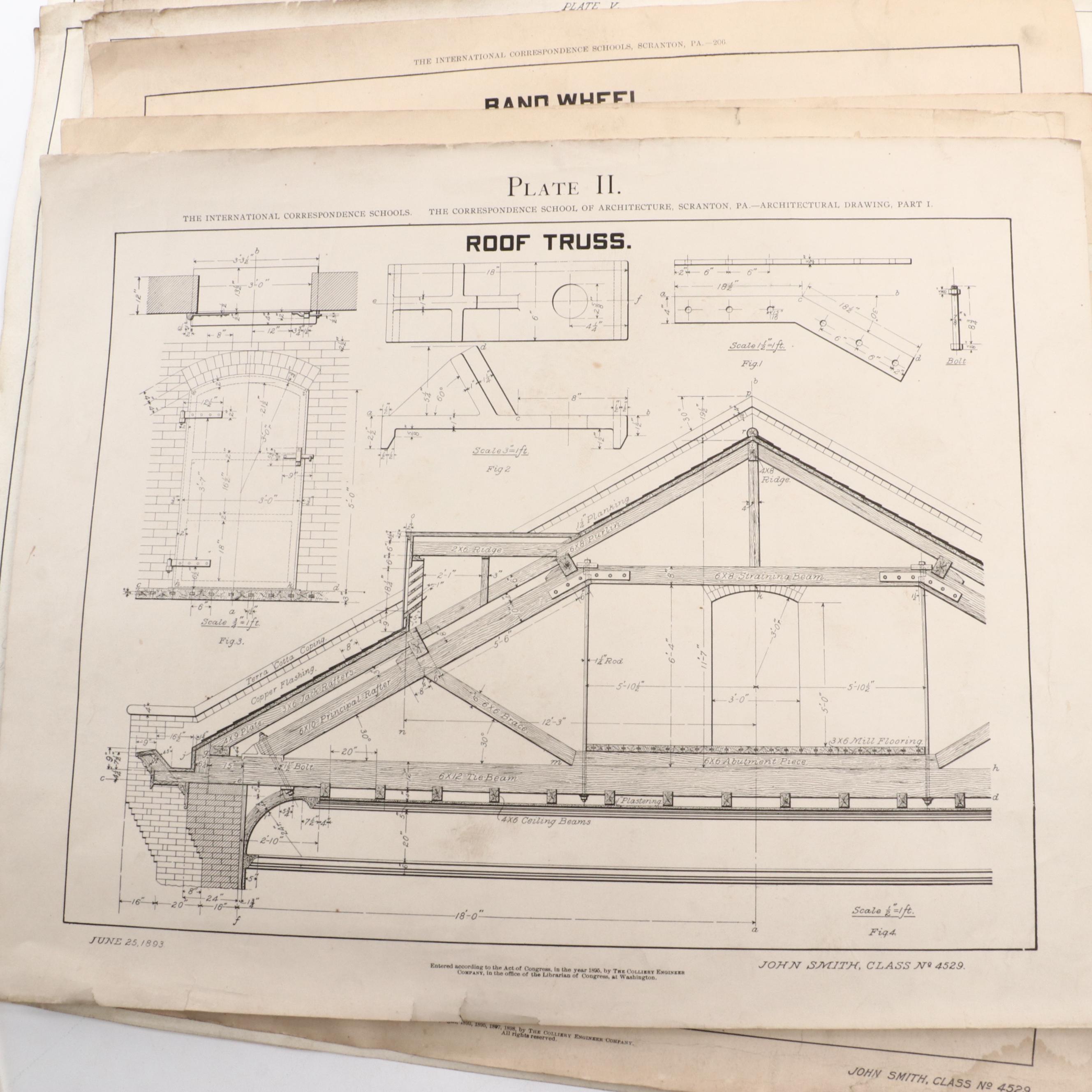

A collection of mechanical schematics by W. A. Koetter John and Smith, Including; reversing lever, machine details, 5-inch globe valve, front elevation, sectional elevation, iron work, roof truss, arched stonework, details, band wheel, shaft hanger, eccentric and brake lever, cornices; plans of alterations of residence of Miss Dorothy I. Neilson and club house of Avondale.
| Type | Mechanical Schematics |
| Publisher | The Correspondence School of Architecture, Cincinnati Mfg. Co., Cincinnati Street Ry. Co. |
| Period | Late 19th/ Early 20th Century, Antique |
| Place of Publication | Scranton, PA, Cincinnati |
| Date | 1893, 1897, 1898, 1901, 1902, 1903, |
| Origin | United States |
| Number of Items | 27 |
Condition
- scratches and surface marks; heavy wear to the cases; creases, folds and tears; toning; dampstaining; mildew odor.
Dimensions

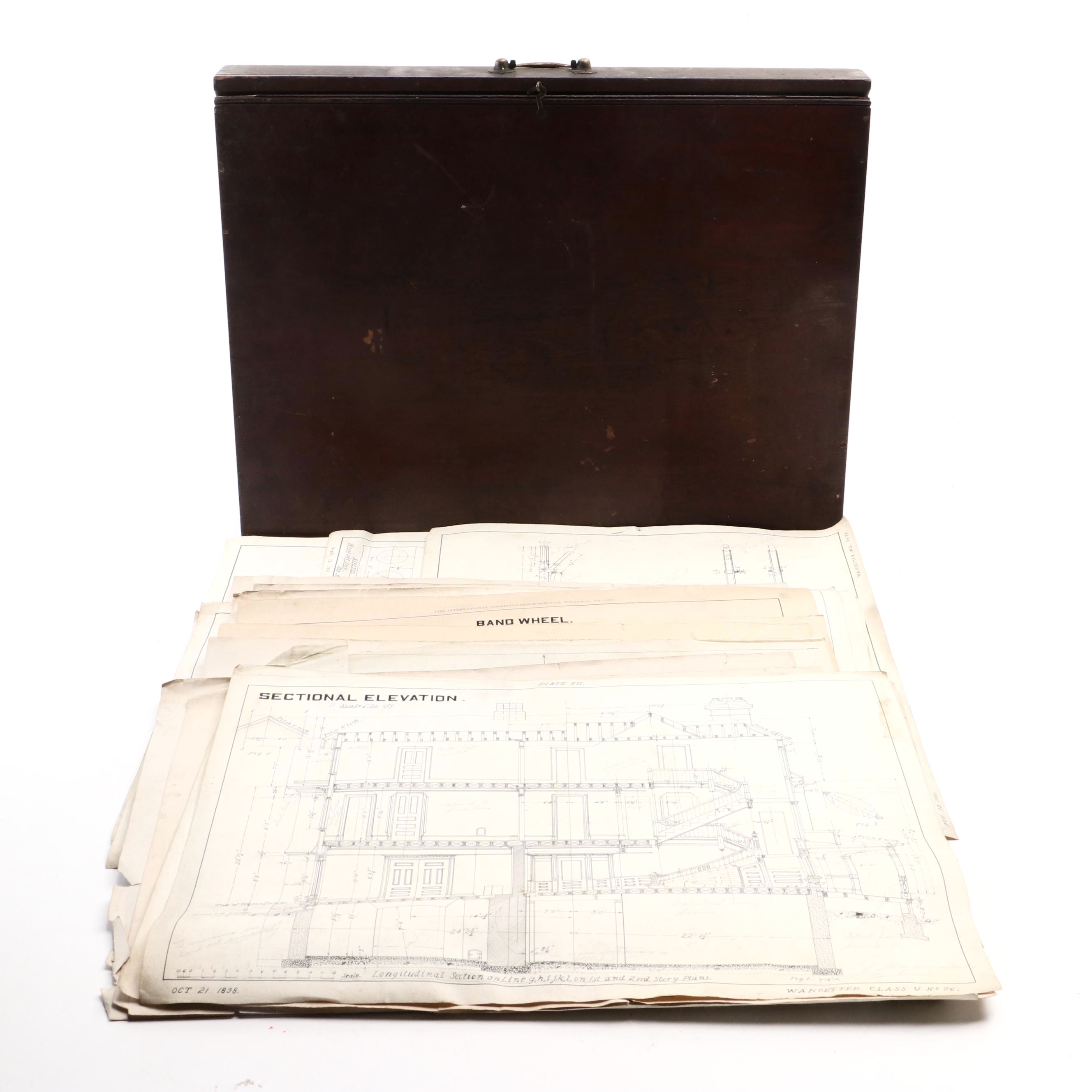

20.0" W x 2.5" H x 15.5" D
- measures case.
Item #
ITMGN09535
